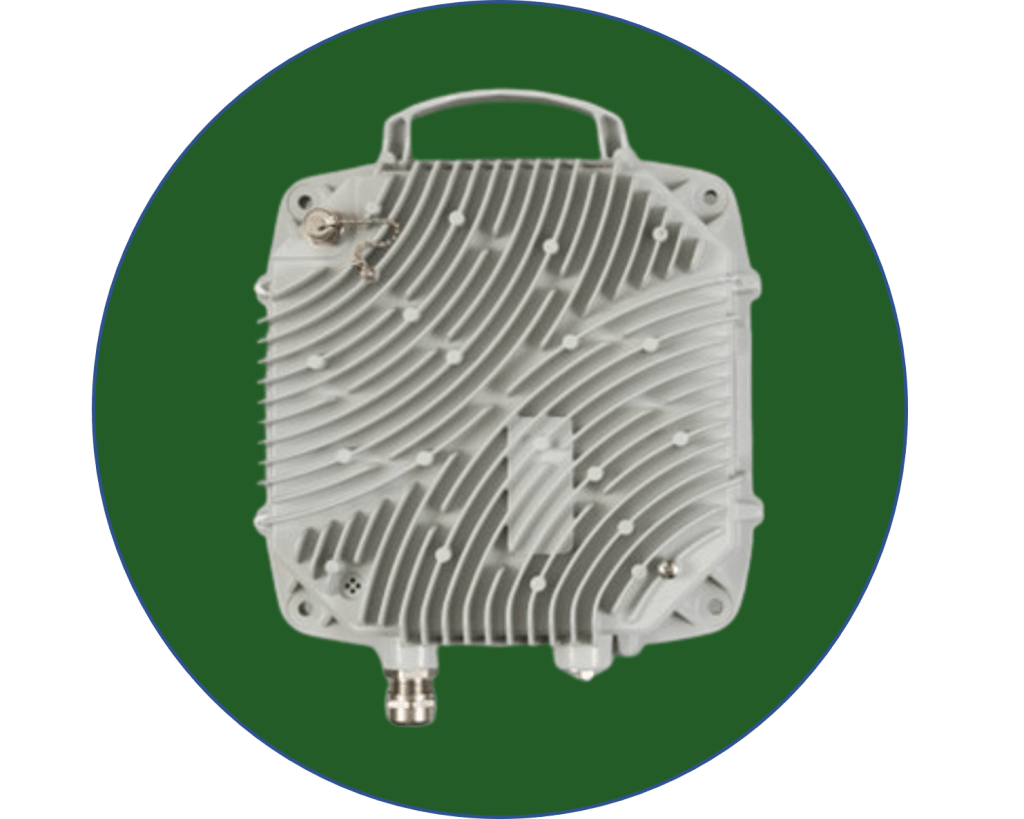

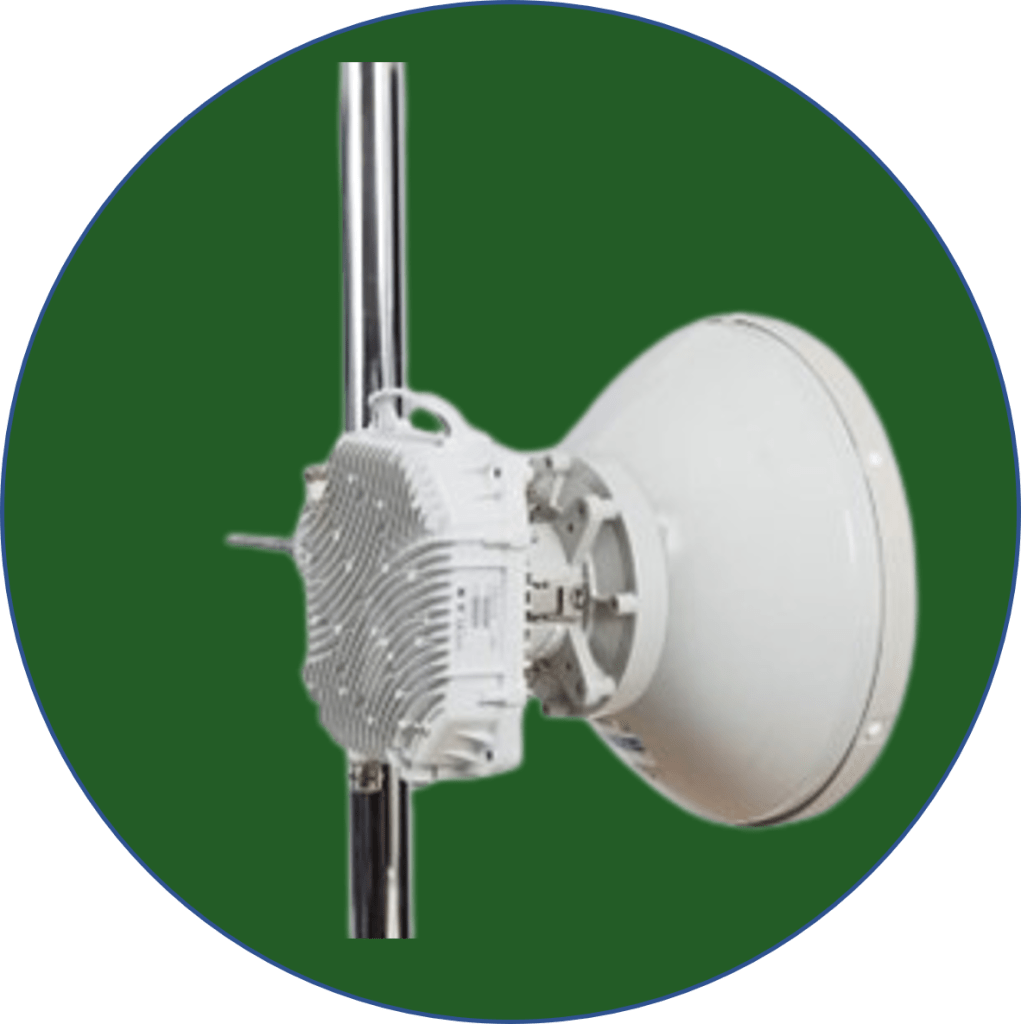

HE+
Full Outdoor Zero Footprint Packet Microwave
Our HE+ high performance single-carrier packet microwave radio is suitable for deployment in the licensed 2-42 GHz bands and in several unlicensed bands in the 2.4 – 24 GHz frequency range. Using advanced modulation of up to 1024 QAM, and radio channels of up to 112 MHz, 890 Mbps of full duplex capacity per single 1+0 link is at your fingertips. Our HE+ microwave radios are distinguished by being fully licensed out of the box, by delivering good performance, by their advanced features and by delivering excellent value-for-money.
Performance, Flexibility & Features
DragonWave Technologies has pioneered the use of Software Defined Radio, which enables in-service upgrades, remote configuration and low total cost of ownership. Radio features such as Adaptive Coding and Modulation (ACM) ensure maximum uptime for customers that offer SLAs based on uptime or are limited on antenna size. Networking features such as QoS and QinQ VLAN are there as well. Carrier-centric features such as Rapid Spanning Tree (RSTP) ensure that redundant paths can be utilized, enhancing network resiliency. HE+ also supports Synchronous Ethernet (SyncE) which is useful in radio access networks.
Attainable link operating distances can vary widely depending on the link frequency, antenna and channel sizes, the prevailing rain zone, and the desired link throughput & link availability. DragonWave Technologies has a complete range of tools and services available to plan your microwave network to meet all design objectives. Generally, higher frequencies are used for short-range, high-capacity links, and lower frequencies are used for long range links. Link lengths exceeding 100 km are possible if properly designed and deployed.
Frequency Band Support
HE+ Frequency Division Duplex (FDD) radios are available in all commonly used licensed frequency bands around the world and also in several unlicensed bands. Please note that those unlicensed bands are not necessarily unlicensed in all countries: always check with your local regulator prior to purchase or deployment.
System Features
- Compact, all-outdoor configuration
- Spectrally efficient
- Powerful forward error correction (FEC)
- Adaptive coding and modulation (ACM) & adaptive power control (APC).
- Capacity up to 890 Full Duplex
- Native IP/Gigabit ethernet POE and SFP interfaces
- Rugged and proven telecom-grade design
- 1+0, 1+1, 2+0, 4+0, ring, star and mesh architectures
- Rapid spanning tree (RST), QinQ, Jumbo frame
- (9600 byte) support
- Network synchronization with Sync-E
- GBE copper or optical port versions available
Applications
- Telecom Service Providers & ISPs
- Fast Roll-out & Temporary Deployment
- 4G Backhaul for Cellular Network operators
- Point-to-Point Wireless networking
- CCTV backhaul for multiple cameras
- Corporate backbone links
- Resilience for Fibre links
